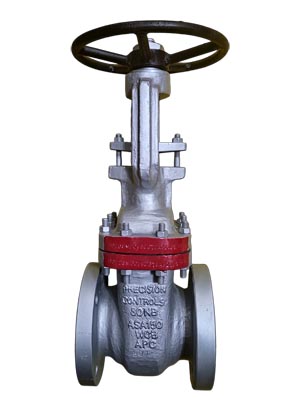

Our Gate Valves serve as efficient on-off valves with flow in either direction. In this design, a wedge slides across a general passage in order to control the fluid. One of the most significant characteristics of this type of valves is its straight – through, unobstructed passage for the fluid to flow, when set in “full open” position (i.e. when the wedge is lifted entirely). As a result, the valve is characterized by minimum turbulence and pressure drop that take place during the operation. While gate valves are good for applications requiring these two factors, they are not recommended in places where throttling occurs. They are designed for on/off service only.
Technical Specifications :
| Size : | 15 NB to 250NB |
| Rating : | IBR approved ANSI Class 150 to 1500 |
| MOC : | Carbon Steel (A216 Gr. WCB) / Alloy Steel (A217 Gr. WC6/WC9) |
| End connections : | Flanged / Butt Weld |
| Options : | IBR / Non IBR |
|
|

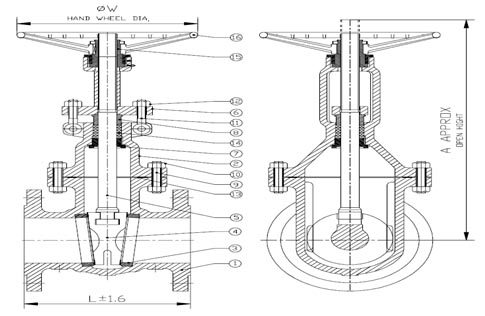

Bill of Material:
| Sr. No | DESCRIPTION | MATERIAL |
|---|---|---|
| 1 | Body | A216 WCB |
| 2 | Bonnet | A216 WCB |
| 3 | Seat Ring | A216 WCB + 13% Cr. |
| 4 | Wedge | A216 WCB + 13% Cr. Facing |
| 5 | Stem | A276 TP 410 |
| 6 | Gland Flange | A 105/CS/A216 WCB |
| 7 | Back Seat | A276 TP 410 |
| 8 | Gland Follower | A276 TP 410 |
| 9 | Stud | A 193 B7 |
| 10 | Nuts | A 194 2H |
| 11 | Eye Bolt | A 193 B7 |
| 12 | Eye Bolt Nuts | A 194 2H |
| 13 | Gasket | Spiral Wounded SS 316 / 316L / 304L 321 with Graphoil filter |
| 14 | Stem Packing | Braided Graphite and Die Formed Graphite ring |
| 15 | Yoke Sleeve | SG Iron / A439 Gr.D2 / Bronze |
| 16 | Hand Wheel | Below 2" = Malleable Iron & Above 2" = SG Iron / Fabricated Steel |
Quality and Performance improvements are a continuous process at MPCPL As a result, the data and specifications may vary from time to time to reflect these enhancements.
